| D | W | Wa | F | t | G | A | a | T |
| 8 | 24 | 12 | 25 | 6 | 13 | 20 | 7.5 | 16 |
| 10 | 28 | 14 | 32 | 7 | 17 | 8.5 | ||
| 12 | 31 | 17 | 40 | 20 | 25 | 10 | 20 | |
| 16 | 36 | 21 | 45 | 7.5 | 24 | 30 | 13 | 24 |
| 20 | 43 | 28 | 40 | 17 | 30 | |||
| 25 | 48 | 33 | 50 | 26 | 45 | 22 | 35 | |
| 30 | 55 | 38 | 60 | 8.5 | 30 | 50 | 27 | 38 |
| 35 | 64 | 44 | 70 | 10 | 34 | 55 | 31 | 40 |
| 40 | 72 | 50 | 80 | 11 | 38 | 60 | 36 | 34 |
| Code | D | g | f | B | b | e | 安裝螺絲 S.H.C.S |
| KPHF | 8 | 6.5 | 5 | 10 | 5 | 3 | M4x10 |
| 10 | 4 | 12 | 6 | M5x12 | |||
| 12 | 8.5 | 5 | 13 | 7 | 4 | M6x14 | |
| 16 | 10 | 6 | 16 | 9 | 6 | M8x20 | |
| 20 | 13 | 8 | 20 | 11 | M10x25 | ||
| 25 | 14 | 9.5 | 25 | 14 | M12x30 | ||
| 30 | 15 | 9 | |||||
| 35 | 10 | 8 | |||||
| 40 | 16 | 11.5 | 32 | 18 | M16x35 |
| D | W | Wa | F | t | G | A | a | T |
| 10 | 26 | 14 | 28 | 6 | 17 | 20 | 8.5 | 16 |
| 12 | 29 | 17 | 36 | 20 | 25 | 10 | 20 | |
| 16 | 33 | 20 | 40 | 6.5 | 30 | 13 | 24 | |
| 20 | 38 | 25 | 24 | 40 | 17 | 30 | ||
| 25 | 45 | 30 | 45 | 7.5 | 26 | 45 | 22 | 35 |
| 30 | 51 | 36 | 55 | 30 | 50 | 27 | 38 | |
| 35 | 58 | 42 | 70 | 8 | 34 | 55 | 31 | 40 |
| 40 | 66 | 48 | 9 | 38 | 60 | 36 | 43 |
| Code | D | g | f | B | d | e | 安裝螺絲 S.H.C.S |
| RCPHF | 10 | 6.5 | 3 | 10 | 6 | 3 | M5x12 |
| 12 | 8 | 5 | 12 | 7 | 4 | M6x14 | |
| 16 | 10 | 6 | 16 | 9 | 6 | M8x20 | |
| 20 | 13 | 7 | 20 | 11 | M10x25 | ||
| 25 | 14 | 9.5 | 25 | 14 | M12x30 | ||
| 30 | 15 | 9 | |||||
| 35 | 10 | 8 | |||||
| 40 | 16 | 11.5 | 32 | 18 | M16x35 |

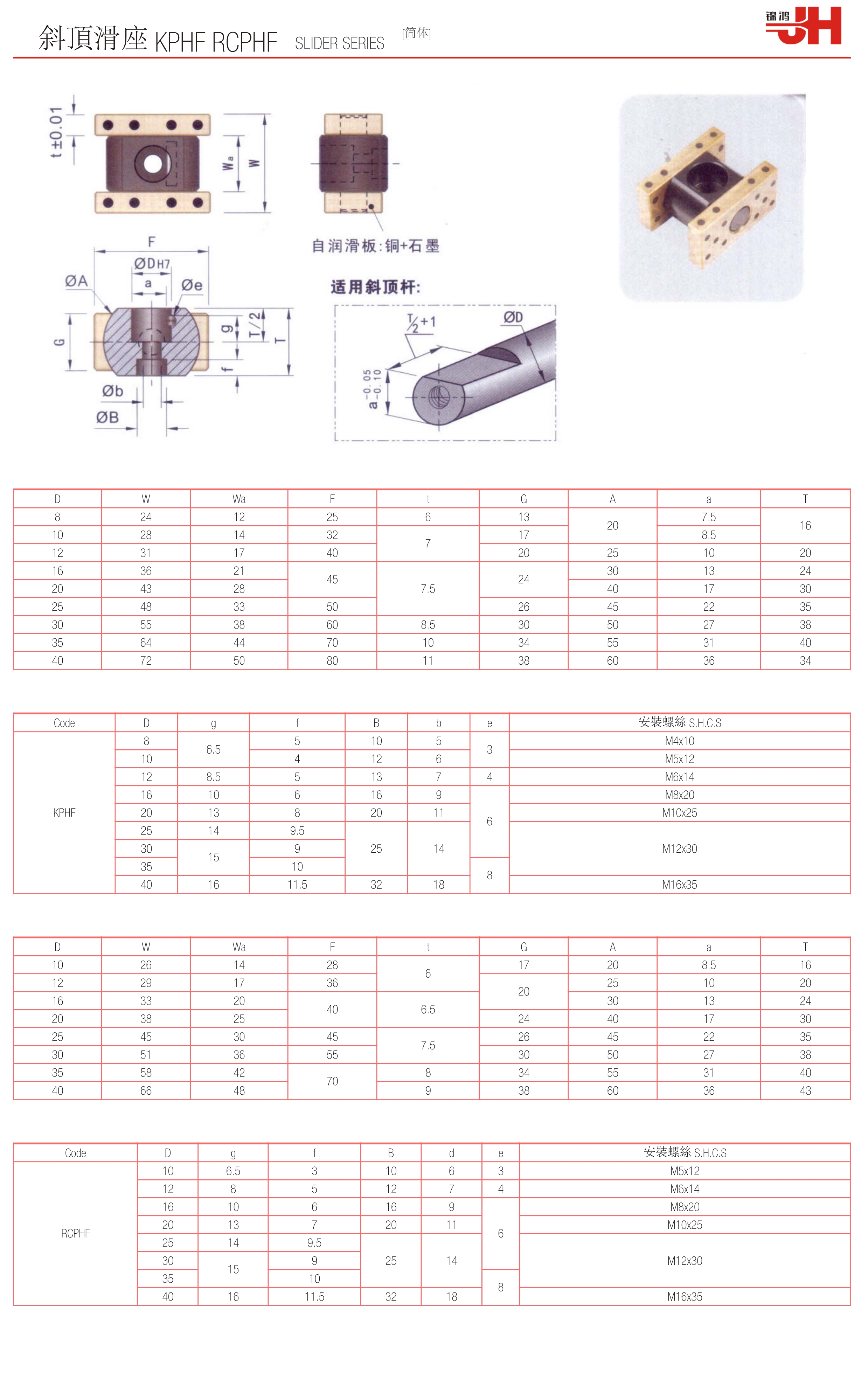

訂購：斜頂滑座 KPHF RCPHF-2
